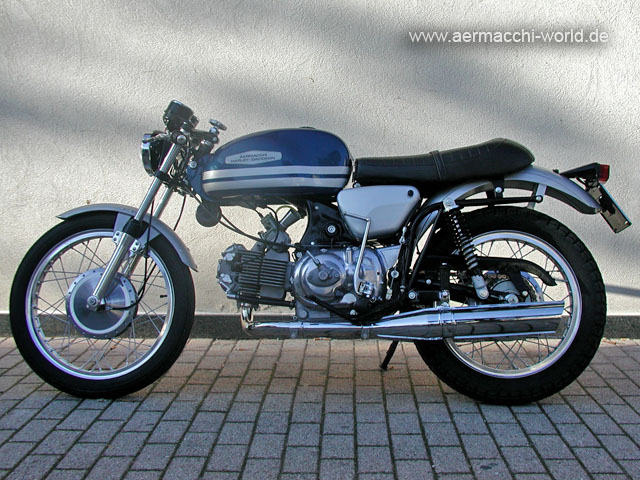

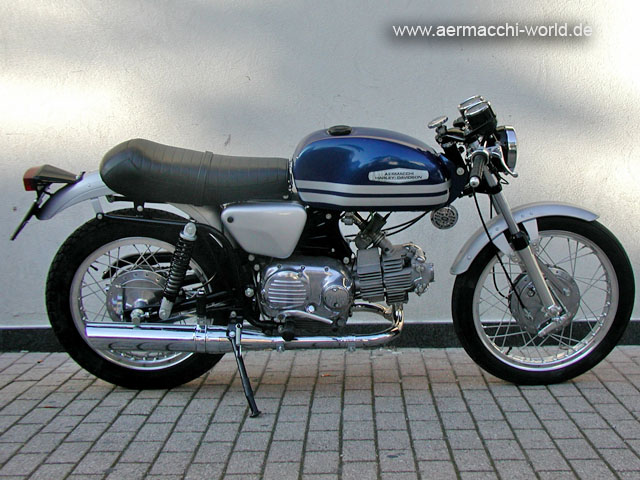

AMF Harley-Davidson TV-350 (Page 2 of 3)
The tech. specs on this page is for the 1972 model of the 2st series)
You can find the tech. specs for the 1971 model on page 1
General Information
| Years built: |
1972 |
| Bikes produced: |
700 |
| Price in 1972: |
|
| Frame: |
|
| Vehicle Ident. # (VIN): |
190504-191204 |
Engine
| Model designation letter: |
TV (2nd Serie) |
| Type: |
|
| Bore: |
|
| Stroke: |
|
| Piston displacement: |
344 ccm |
| Compression ratio: |
9:1 |
| Power Out: |
29 PS @ 7500 U/min |
| Top Speed: |
160 Km/h |
| Lubrication system: |
|
| Starter system: |
|
Ignition System
| Type: |
|
| Ignition timing: |
|
| Trigger air gap: |
|
| Spark plug: |
|
| Spark plug electrode gap: |
|
| Electrial system: |
6 Volt / 70 Watt |
| Battery: |
6 Volt 12 A/h |
Dimensions and Weight
| Overall length: |
|
| Handlebar width: |
|
| Ground clearance: |
|
| Wheelbase: |
52.76 inches |
| Seats: |
|
| Dry weight: |
|
| Steering angle: |
|
| Steering Head angle: |
|
| Trail: |
|
| Front suspension: |
|
| Rear suspension: |
|
| Fuel tank: |
3.96 US gallons |
| Transmission: |
5-Speed |
| Front fork: |
Ceriani |
Transmission System:
| Clutch: |
|
| Primary drive pinion gear: |
|
| Primary drive crown wheel gear: |
|
| Primary reduction: |
|
| Gear ratios: |
|
| Gearshift pattern: |
|
| Gearbox sprocket: |
|
| Chain type: |
|
Carburetor
| Type: |
DellOrto VHB 30 AS |
| Venturi dia.: |
|
| Main jet: |
|
| Pilot jet: |
|
| Starting jet: |
|
| Throttle valve: |
|
| Jet needle: |
|
| Needle jet: |
|
| Air screw setting: |
|
| Air filter: |
|
Wheels and Brakes
| Front wheel tire: |
3.00 x 19 |
| Rear wheel tire: |
3.50 x 18 |
| Front brake: |
|
| Rear brake: |
|
| Rims: |
|
| Spokes: |
|
| Tire pressure: |
|
Do you have further information? E-Mail: webmaster@aermacchi-world.de
